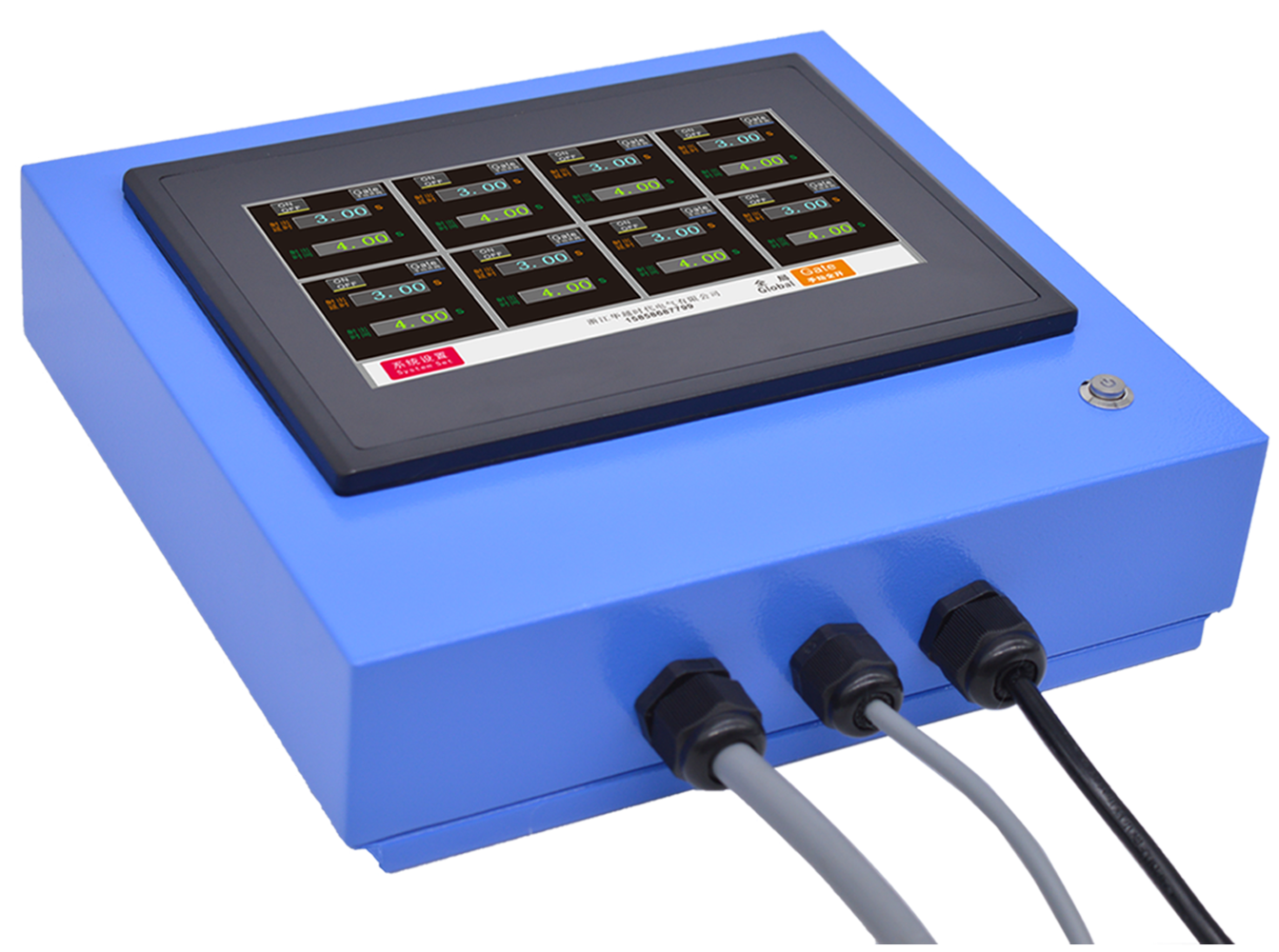

SVGE-8 Oil and Gas Universal Sequence Controller
Features
Oil valves and gas valves are interchangeable.
Single-loop opening or closing is available.
Touch screen display for easy operation.
Manual opening or closing of solenoid valves is possible.
Supports two-stage or four-stage time setting.
Single-loop opening or closing is available.
Touch screen display for easy operation.
Manual opening or closing of solenoid valves is possible.
Supports two-stage or four-stage time setting.
Parameter
Power Input: 200~240V AC 50/60Hz
Signal Input: DC24V or switch input (selectable at the factory)
Time Range: 0.00~99.99 seconds
Control Groups: 8 zones
Output Voltage: 24VDC or 220VAC
Signal Input: DC24V or switch input (selectable at the factory)
Time Range: 0.00~99.99 seconds
Control Groups: 8 zones
Output Voltage: 24VDC or 220VAC
Status bar Information
Product configuration
1.Host
2.Device power cord
3.7 or 8 inch touch screen
4.Trigger signal connection cable
5.Solenoid valve control connection line

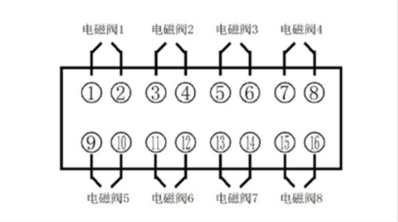

Solenoid valve control
connection line connection diagram
connection line connection diagram

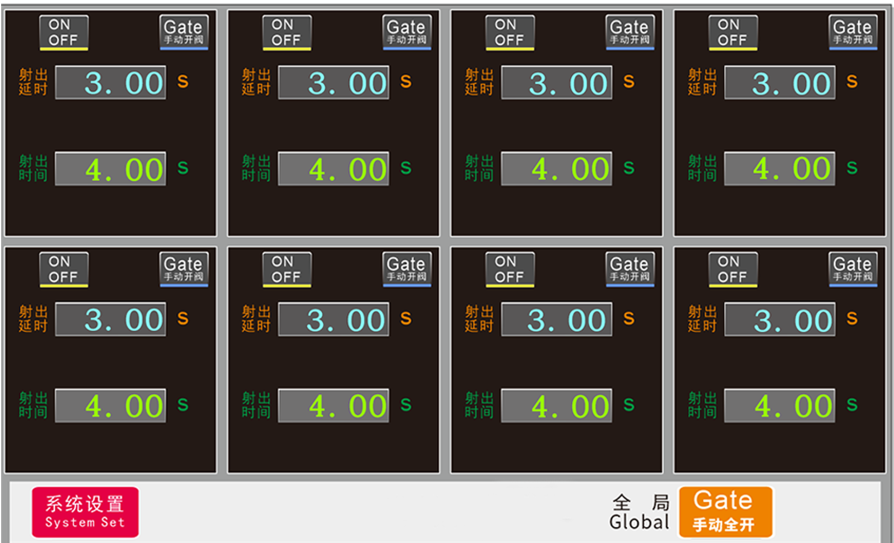

Time Period Control Interface
Two-time periods:
T1, T2 (T1 is the delay time, T2 is the injection time)
Four time periods:
T1, T2, T3, T4 four time segments
(T1, T3 are delay times, T2, T4 are injection times)
(T1, T3 are delay times, T2, T4 are injection times)

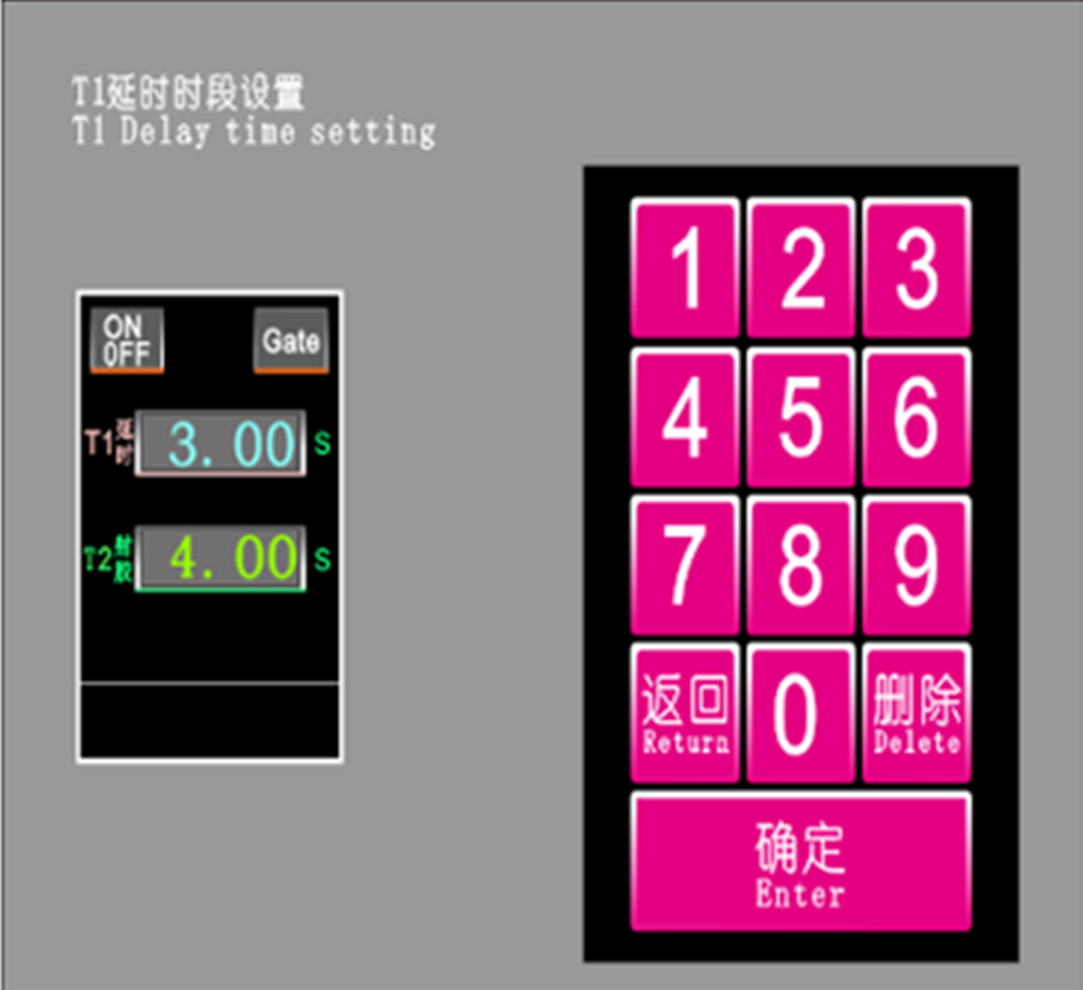

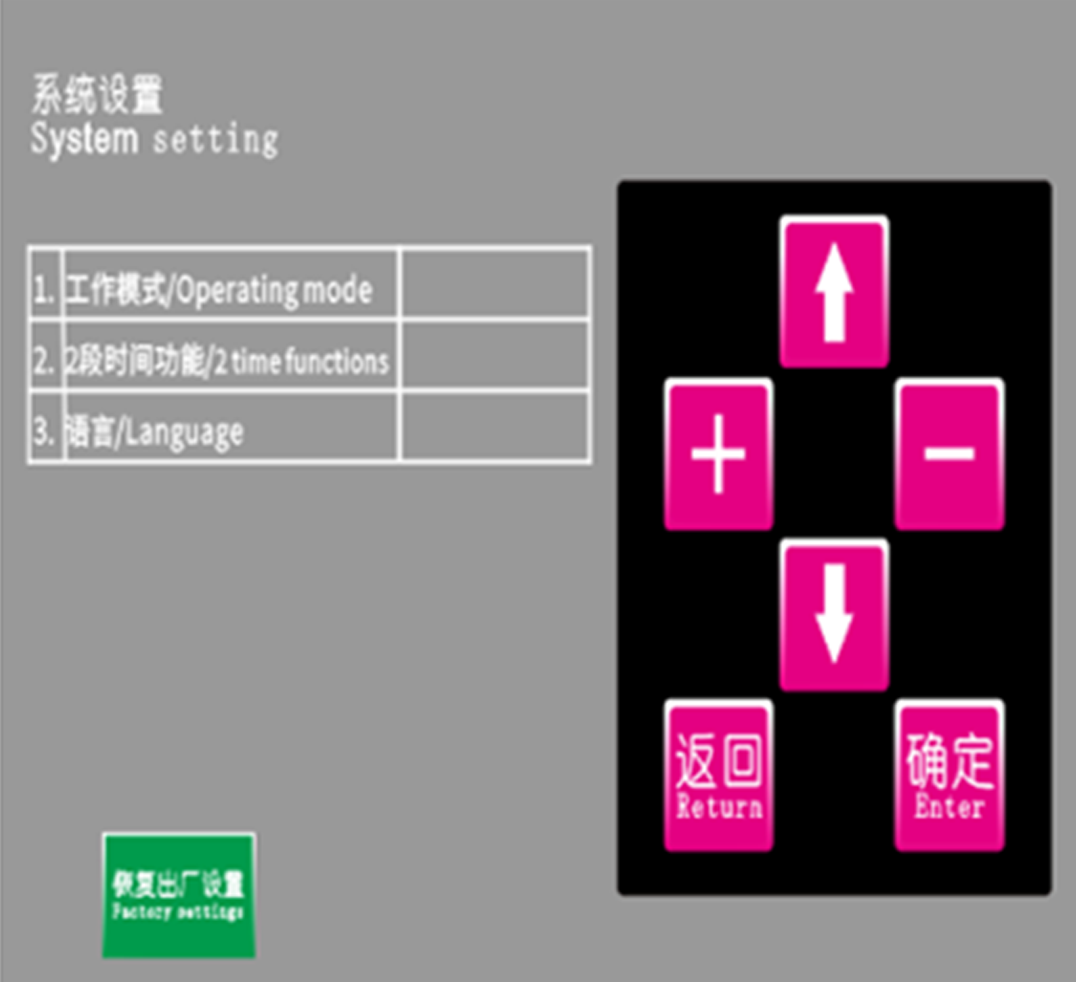

Settings interface
Trigger Signal Mode

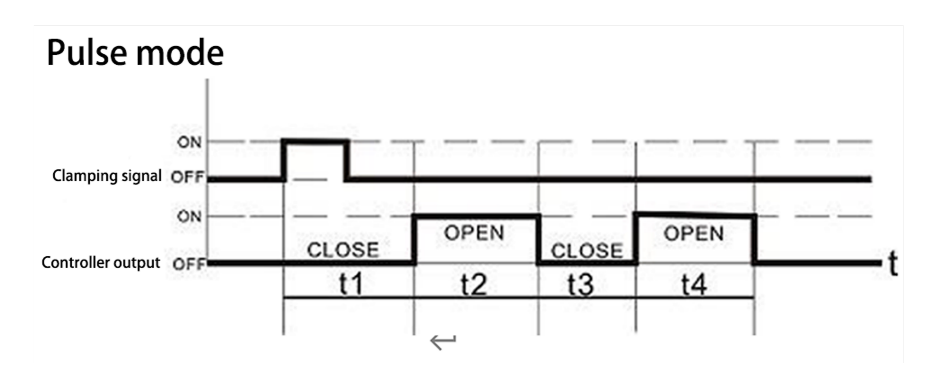

Pulse mode

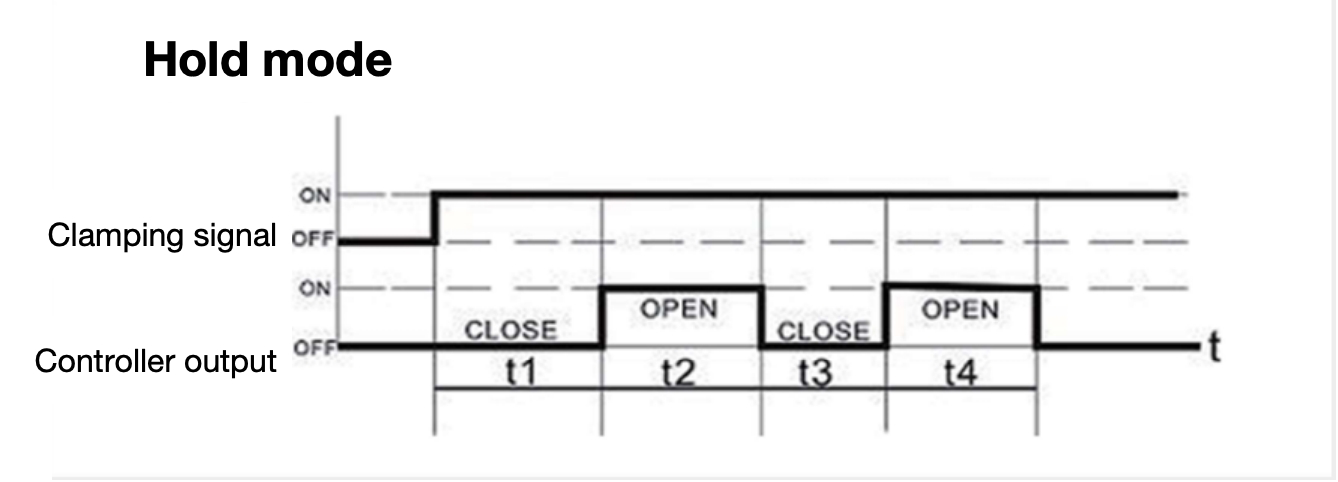

Hold mode
